Streamline 322RCS07X: Key Benefits

Key Features

The Streamline 322RCS07X system is available with Solahart's CSA2007 solar collectors to harvest the sun's heat and transfer it to the water. The high efficiency Australian designed CSA2007 Envelope collector with its sputtered selective surface copper absorber plate is suitable for use in lower solar gain areas. Two only CSA2007 collectors may be installed with a 320RMX solar storage tank.

Solar energy is transferred directly to the water as it is moved through the collectors by a circulator and the heated water is stored in the ground mounted RMX series tank. The electric boosted models are equipped with an in-tank element to ensure a supply of hot water during periods of poor or no solar gain. Alternatively the system can be installed as a preheater with an inline Solahart gas booster water heater.

  •  Stylish slimline design
  •  Minimum visual impact
  •  Can cut water heating energy use by up to 75%^
  •  Choice of collectors to suit high to low solar gain areas



* The suggested price is comprised of RRP less the applicable solar incentive and excluding installation. Solar incentive value applies to 322RCS07X system in Zone 3.

^ Energy savings of up to 75% shown are based on Australian Government approved TRNSYS simulation modelling of a Solahart 322RCS07X and using a medium load in Zone 3 and apply when replacing an electric water heater. Any savings will vary depending upon your location, type of Solahart system installed, orientation and inclination of the solar collectors, type of water heater being replaced, hot water consumption and fuel tariff. Maximum financial savings off your hot water bill are achievable when replacing an electric water heater on continuous tariff.

† Solahart Warranty Details: 10/3/2 warranty; 10 year cylinder and collector supply, 3 year cylinder and collector labour, 2 year parts supply including labour; applies to a single family domestic dwelling only. Without limiting these periods, a 5-year whole-of-product warranty applies where a rebate has been received under Solar Victoria’s Solar Homes Program for installations from 1st July 2023. For further details, call 131 031.
All other applications have a 3/1/1 warranty; 3 year cylinder and collector supply, 1 year parts supply, 1 year labour.

‡ Enhanced Frost Protection – these systems have a level of enhanced recirculating freeze protection designed to guard against freeze conditions. These systems are suitable to be installed at an altitude not exceeding 600 m above sea level.

∠ Harsh water regions – the Solahart warranty may not apply if the water heater is connected to a water supply which: is scaling with a saturation index >+0.8, or; is corrosive with a saturation index <-1.0, or; has a Total Dissolved Solids content >2500 mg/L.

272RCS07X Specifications

Solar Storage Tank

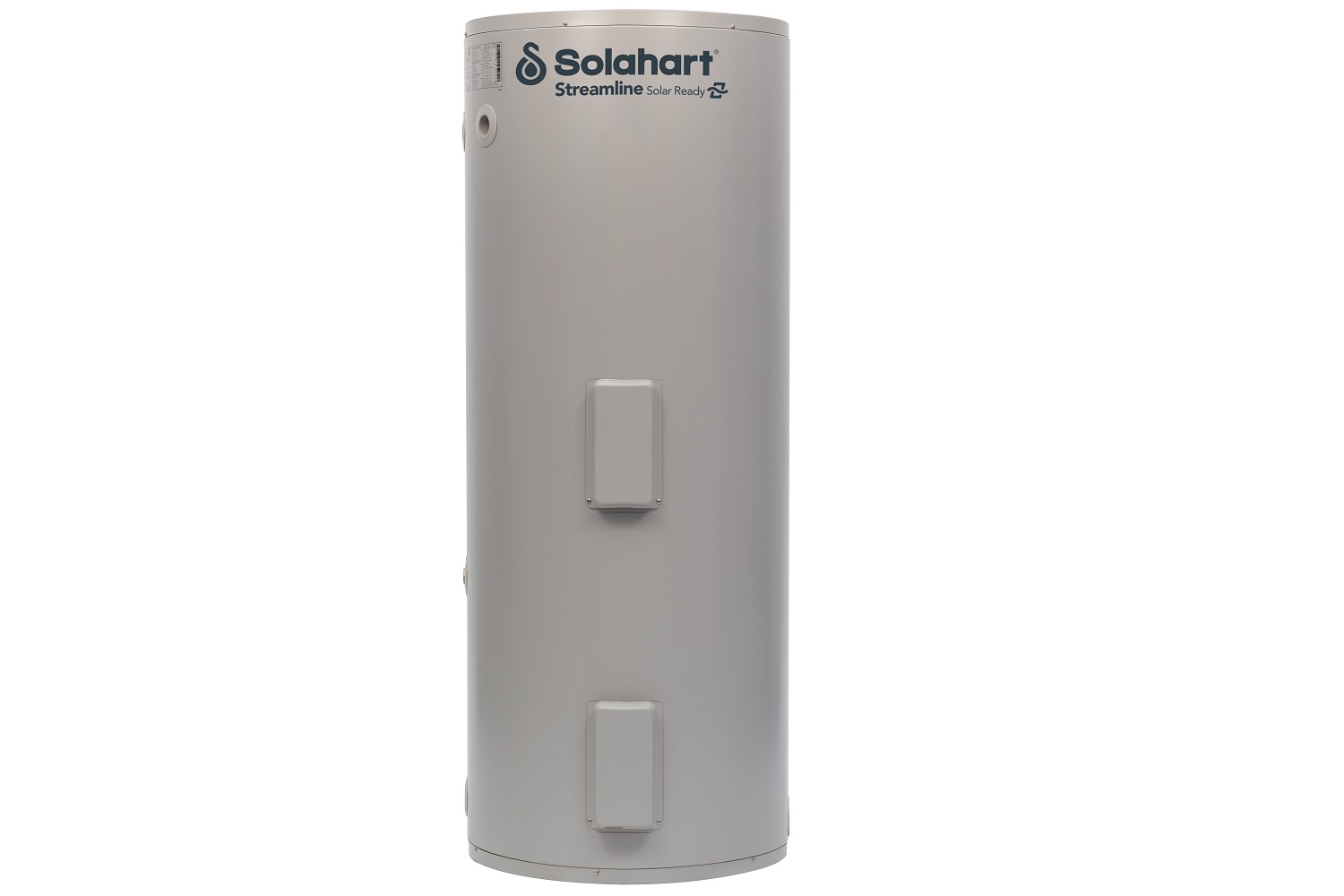

Tank Model 320RMX
Storage Capacity 320 litres
Boost Capacity (Electric) 170 litres
Installation Indoor/Outdoor
Solar Controller Kit Kit number 299316
Weight Empty 92 kg
Weight Full 417 kg
Height 1.640 m
Width 0.640 m
Depth 0.680 m



Electric Boost Specifications
Heating Unit Type Cooper sheath immersion element
Supply Voltage 220 V - 240 V   50 Hz
Recovery Rate @ 240 V and Temperature Rise of:
Rating Current
Amps
30°C
litres/hour
40°C
litres/hour
50°C
litres/hour
Booster Element Size - 3.6kW 15 103 77 62



Water Supply
TPR Valve Setting 1000 kPa / 145 psi
ECV Setting (1) 850 kPa / 125 psi
Maximum Supply Pressure
With ECV 680 kPa / 100 psi
Without ECV 800 kPa / 115 psi
Minimum Supply Pressure 200 kPa / 29 psi
Water Connections
Cold Rp 3/4
Hot Rp 3/4
Solar DN15 compression fittings (solar hot and solar cold inlets to tank Rp 3/4)



CSA2007 Collectors
Aperture (Heating) Area  1.87 m2
Dimensions
Length 1996  mm
Width  1043  mm
Height 82  mm
Capacity 1.5 litres
Working Pressure  1000 kPa / 145 psi
Weight
Empty 36 kg
Full 38 kg
Absorber Surface Tinox sputtered selective surface
Absorber Material copper
Header and Riser Material copper tube
Tray Frame Material extruded aluminium
Insulation Material - Base 38mm glass wool blanket
Glass 3.2mm tempered low iron glass



Collector Installation (2) 2 x CSA2007 Collectors
Roof Area Dimensions (3)
Length 2.0 m
Width 2.3 m
Solar Kits - 2 x CSA2007 Collectors
Collector Kit (PN 12103016) 1

(1) Expansion Control Valve (ECV) is not supplied.

(2) Two only CSA2007 collectors may be installed with a 320RMX solar storage tank.

(3) An additional 0.9 m should be left on all four sides of the collector installation for safe access and servicing.

How Split System Solar Water Heaters Work

The Solahart 322RCS07X split solar water heater is designed to be installed as an electric boosted solar water heater with its booster heating unit connected to a power supply, however it may be installed with an in-series continuous flow or storage booster. If installed with an in-series booster, then the electric booster heating unit will not be connected to a power supply.

Solar Operation

The operation of the circulator is controlled by the combination of:

  • the hot sensor located at the outlet of the solar collectors. The hot sensor measures the water temperature at the outlet of the solar collectors.
  • the cold sensor located at the solar cold outlet at the base of the solar storage tank. The cold sensor measures the water temperature at the bottom of the solar storage tank.
  • the differential controller located in the solar control unit.



With open circuit split systems, the water is circulated from the tank at ground level through the solar collectors by an electric pump called a 'circulator'. As the sun heats the water in the solar collectors, the increase in temperature activates the circulator. The circulator switches on whenever the water in the solar collectors is hotter than the water in the solar storage tank. The circulator moves the hotter water from the solar collectors through the solar hot pipe to the solar storage tank and the cooler water from the solar storage tank is circulated to the solar collectors via the solar cold pipe to be heated by the sun’s energy.

This process continues whilst solar energy is available and the water in the solar storage tank requires heating. The circulator will deactivate when the water temperature in the solar storage tank is around 70°C to 75°C.

During normal operation if the amount of solar energy available reduces, such as when the sky becomes very cloudy or the sun becomes lower in the sky in the late afternoon, and the water no longer gains usable heat from the solar collectors, the circulator will deactivate. The water heater will then enter standby mode.

Over-temperature Operation

The purpose of the Over-temperature operation is to reduce the amount of overheating or ‘stagnation’ of water in the solar collectors. When the water in the solar storage tank has reached 70°C to 75°C and the circulator has deactivated, the solar collectors will continue to gain heat while solar energy is still available.

If the water in the solar collectors stagnates and its temperature becomes very high, the circulator will activate for a short period to transfer this extra energy to the solar storage tank. The circulator will deactivate when the water temperature in the solar collectors decreases. This process will either repeat for a maximum of eight cycles or until the water temperature in the solar storage tank reaches around 75°C to 80°C or the hot sensor does not sense another increase in water temperature to a stagnation level after a cycle is completed, i.e. the solar energy available reduces.


Night Time Cooling Operation

The purpose of Night Time Cooling operation is to rid the solar storage tank of excess solar energy gained by Over-temperature operation during that day. The desired water temperature in the solar storage tank is to be between 60°C to 70°C.

If the solar control unit has entered Over-temperature operation during the day, then after the water temperature in the solar collectors reduces later in the day or early evening, the circulator will activate. Water from the solar storage tank will circulate through the solar collectors and excess heat in the water will radiate from the solar collectors reducing the temperature of the water. The water will circulate for a period of time and until the water temperature in the solar storage tank is around 60°C to 70°C. The water heater will then enter standby mode.


Freeze Protection Operation

The purpose of Freeze Protection operation is to prevent freezing of water in the solar collectors and solar pipe work in very cold conditions. The water in the solar collectors will cool during periods of no solar gain. In very cold conditions, such as overnight and very early in the morning before sunrise, the water temperature can approach freezing point.

If the hot sensor measures that the water temperature in the solar collectors is approaching freezing, the circulator will activate. Water from the solar storage tank, containing more energy than the water in the solar collectors, will circulate through the solar collectors keeping the water temperature above freezing point. The circulator will remain on for some minutes and until the hot sensor measures a water temperature at a safe level above freezing. When both of these conditions are met, the circulator will deactivate. The water heater will then enter standby mode.

This process will repeat whenever the hot sensor measures that the water temperature in the solar collectors is approaching freezing.

This model also has enhanced frost protection. The frost element located at the bottom of the solar storage tank will turn on when the circulator activates and the cold sensor measures a very low water temperature at the bottom of the tank. The purpose of the anti-freeze heating unit is to provide additional energy to the water to assist in the prevention of freezing in the solar pipe work and solar collectors. The frost element will turn off when either the water temperature has risen by a few degrees or the circulator deactivates. The water heater will then enter standby mode.

Standby Mode

The water heater will be in Standby mode whenever conditions are not favourable for solar heating in Normal operation, and Over-temperature operation and Night Time Cooling are not required or have been completed, and conditions are not cold enough for or in-between Freeze Protection operation.
