Why Solahart?

For over 70 years, Solahart has been Australia’s most recognised name in solar. Our systems are designed and manufactured for the harshest Australian conditions with quality ingrained in everything we do.

Solahart’s experienced dealers and accredited installers are also well positioned to provide advice on the benefits of the Powerwall 3 battery and the other renewable energy solutions we offer that help householders and businesses reduce their energy costs and their impact on the environment. Our specialised dealers are skilled in understanding the specific needs of consumers and tailoring solutions to meet those needs and are ready to provide advice on the benefits of the Powerwall 3 battery. Due to the complexity of what we sell and the uniqueness of every situation, we believe the best approach is to come to your home and offer a free solar assessment.

Powerwall 3 (DC Version)

Model Powerwall 3 - DC Inverter/Battery
Performance Specifications
AC Voltage (Nominal)  230 V
Feed-in type Single phase
Grid frequency 50 Hz
Total energy(1) 14 kWh
Usable energy(1) 13.5 kWh
Real power, Maximum Continuous Discharge Power 5 kW (Charge and discharge) Configurable up to 11.04 kW
Apparent power, Maximum Continuous Discharge Power 5 kVA (Charge and discharge) 5 kW
Maximum supply fault current 10 kA
Maximum Continuous AC Output Current (Power at 230 V) 21.7 A (5 kW), 43.5 A (10 kW), 48 A (11.04 kW)
Power factor output range  + / - adjustable
Power Scalability Up to 4 Powerwall 3 units supported
Round trip efficiency 89 %
Tesla Warranty* 10 years
Mechanical Specifications
Dimensions 1099 x 609 x 193 mm
Weight 130 kg
Mounting options Floor or wall mount
Environmental Specifications
Operating temperature -20 to 50°C
Operating humidity  Up to 100%, condensing
Storage conditions  -20 to 30°C | Up to 95 % RH, non-condensing | State of Energy (SOE): 25 % initial
Maximum elevation 3000 m
Environment Indoor / Outdoor rated
Ingress rating (Battery and power electronics)  IP67
Ingress rating (Wiring compartment)  IP55
Pollution Rating  PD3
Noise level @ 1 m  < 50 db(A) typical, < 62 db(A) maximum

Please visit Tesla website for the latest certificates.
All pictures shown are for reference only. Actual appearance may vary.

* Refer to Tesla Warranty for details of the product warranty and Solahart Owner’s Guide & Installation Instructions for installation details

Solahart Industries Pty Ltd (Solahart) operates a national network of dealers through which independent companies operate dealerships in designated geographic areas. To find your local Solahart Dealer, please visit solahart.com.au. © Solahart (2024). Solahart and the Solahart logo are registered trademarks of Solahart.

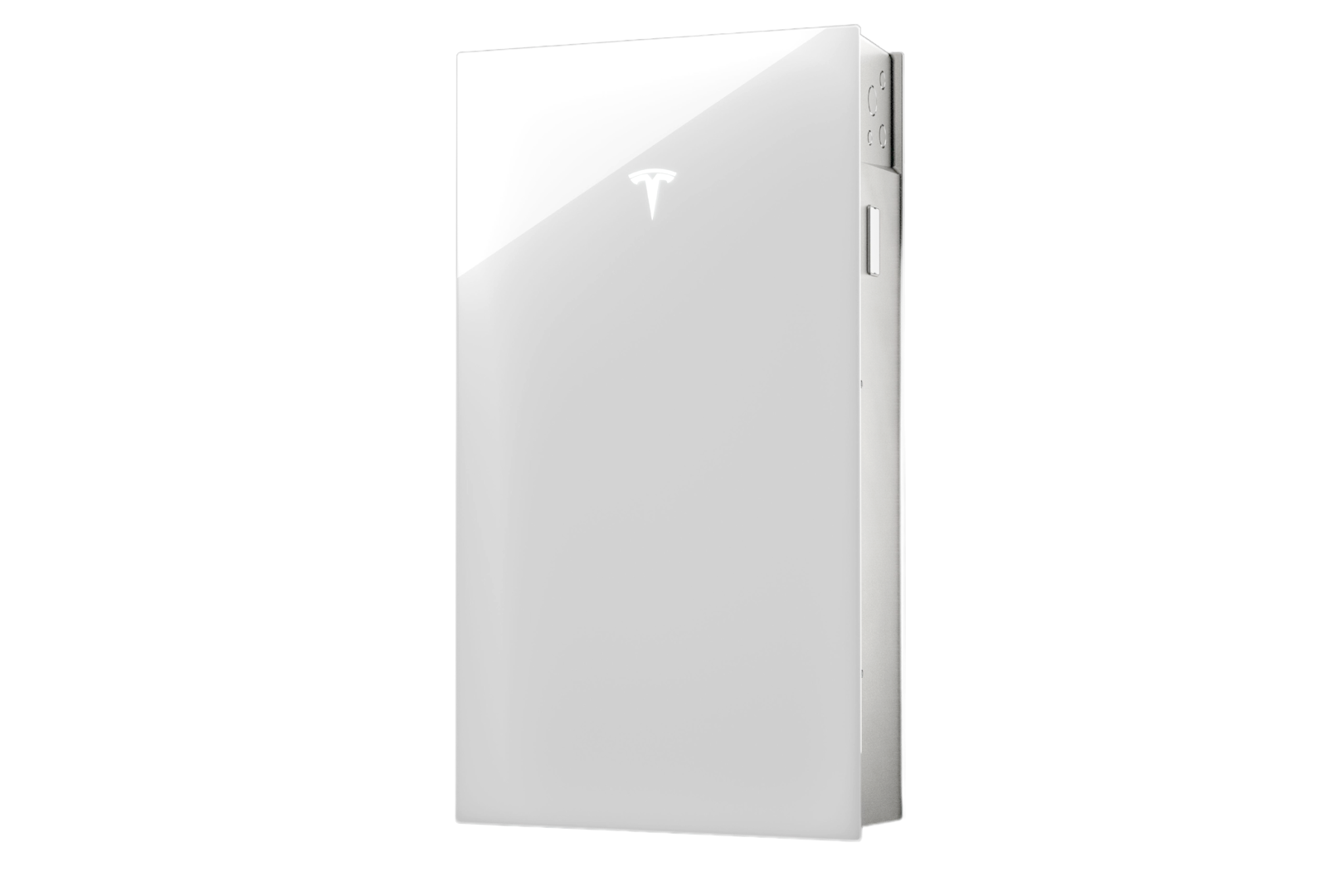

What Is Powerwall 3?

Tesla Powerwall 3 is a fully-integrated DC inverter and battery system perfect for residential and light commercial use. Utilising advanced rechargeable lithium-ion battery technology, it offers robust energy storage solutions, enhancing solar self-consumption, load shifting, and backup power capabilities.

Solahart Tesla Powerwall Certified Installers provide customised solar-plus-battery solutions, enabling you to capture and store the abundant power of the sun. This reduces reliance on fossil fuels and promotes a sustainable energy future.

With Powerwall 3, you can store solar energy generated during the day for use anytime. During daylight hours, the sun shines on your solar panels, charging your battery. At night, your home draws electricity from your battery, powering your home with clean and sustainable energy.



Tesla Powerwall 3 Downloads

Datasheets

Tesla Powerwall 3 DC Datasheet: Download
